TVS Diode SM8 Series
6600W overvoltage protection device in DO-218AB package
Description
Features

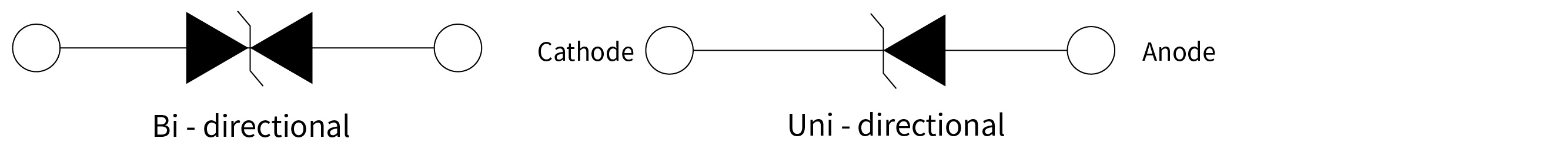

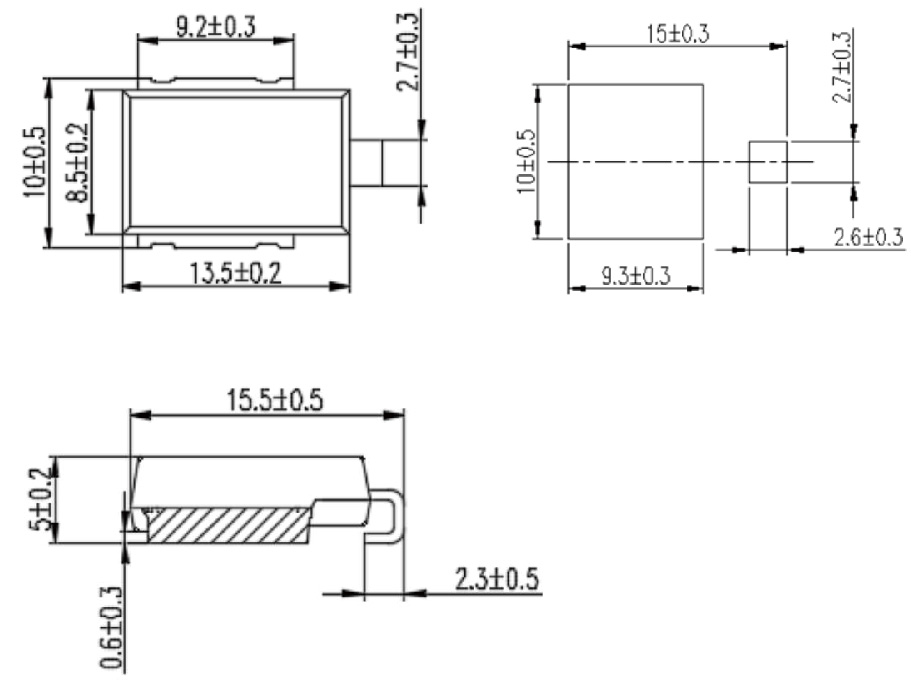

Package
| P/N | Reverse Stand off Voltage VR(Volts) | VBR | Test Current Ir(mA) | Maximum Reverse Leakage IR @VR(uA) | Maximum Peak Pulse Current Ipp (A) | Maximum Clamping Voltage Vo Ipp(V) | Status | Samples | ||||
| Bi | Uni | MIN | MAX | 25℃ | ||||||||
| SM8S18CA | SM8S18A | 18 | 20 | 22.1 | 5 | 10 | 150 | 226 |  | Request sample | ||
| SM8S22CA | SM8S22A | 22 | 24.4 | 26.9 | 5 | 10 | 150 | 186 | | Request sample | ||
| SM8S24CA | SM8S24A | 24 | 26.7 | 29.5 | 5 | 10 | 150 | 170 | | Request sample | ||
| SM8S26CA | SM8S26A | 26 | 28.9 | 31.9 | 5 | 10 | 150 | 157 | | Request sample | ||
| SM8S28CA | SM8S28A | 28 | 31.1 | 34.4 | 5 | 10 | 150 | 145 | | Request sample | ||
| SM8S33CA | SM8S33A | 33 | 36.7 | 40.6 | 5 | 10 | 150 | 124 | | Request sample | ||
| SM8S36CA | SM8S36A | 36 | 40 | 44.2 | 5 | 10 | 150 | 114 | | Request sample | ||
| SM8S40CA | SM8S40A | 40 | 44.4 | 49.1 | 5 | 10 | 150 | 102 | | Request sample | ||
| SM8S43CA | SM8S43A | 43 | 47.8 | 52.8 | 5 | 10 | 150 | 95.1 | | Request sample | ||
| SM6K10CA | SM6K10A | 10 | 11.1 | 12.3 | 5 | 10 | 388.2 | 17 | | Request sample | ||
| SM6K11CA | SM6K11A | 11 | 12.2 | 13.5 | 5 | 10 | 302.6 | 18.2 | | Request sample | ||
| SM6K12CA | SM6K12A | 12 | 13.3 | 14.7 | 5 | 10 | 331.7 | 19.9 | | Request sample | ||
| SM6K13CA | SM6K13A | 13 | 14.4 | 15.9 | 5 | 10 | 307 | 21.5 | | Request sample | ||
| SM6K14CA | SM6K14A | 14 | 15.6 | 17.2 | 5 | 10 | 284.5 | 23.2 | | Request sample | ||
| SM6K15CA | SM6K15A | 15 | 16.7 | 18.5 | 5 | 10 | 270.5 | 24.4 | | Request sample | ||
| SM6K16CA | SM6K16A | 16 | 17.8 | 18.7 | 5 | 10 | 253.8 | 26 | | Request sample | ||
| SM6K17CA | SM6K17A | 17 | 18.9 | 20.9 | 5 | 10 | 239.1 | 27.6 | | Request sample | ||
| SM6K18CA | SM6K18A | 18 | 20 | 22.1 | 5 | 10 | 226 | 29.2 | | Request sample | ||
| SM6K20CA | SM6K20A | 20 | 22 | 24.5 | 5 | 10 | 2037 | 32.4 | | Request sample | ||
| SM6K22CA | SM6K22A | 22 | 24.4 | 28.9 | 5 | 10 | 185.9 | 35.5 | | Request sample | ||
| SM6K24CA | SM8K24A | 24 | 26.7 | 29.5 | 5 | 10 | 169.7 | 38.9 | | Request sample | ||
| SM6K26CA | SM6K26A | 26 | 28.9 | 31.9 | 5 | 10 | 156.8 | 42.1 | | Request sample | ||
| SM6K28CA | SM6K28A | 28 | 31.1 | 34.4 | 5 | 10 | 145.4 | 45.4 | | Request sample | ||
| SM6K30CA | SM6K30A | 30 | 33.3 | 38.8 | 5 | 10 | 136.4 | 48.4 | | Request sample | ||
| SM6K33CA | SM6K33A | 33 | 36.7 | 40.6 | 5 | 10 | 123.8 | 53.3 | | Request sample | ||
| SM6K36CA | SM6K36A | 36 | 40 | 44.2 | 5 | 10 | 113.6 | 58.1 | | Request sample | ||
| SM6K40CA | SM6K40A | 40 | 44.4 | 40.1 | 5 | 10 | 102.3 | 64.5 | | Request sample | ||
| SM6K43CA | SM6K43A | 43 | 47.8 | 52.8 | 5 | 10 | 95.1 | 80.4 | | Request sample | ||
| SM8K10CA | SM8K10A | 10 | 11.1 | 12.3 | 5 | 10 | 470.6 | 17 | | Request sample | ||
| SM8K11CA | SM8K11A | 11 | 12.2 | 13.5 | 5 | 10 | 439.6 | 18.2 | | Request sample | ||
| SM8K12CA | SM8K12A | 12 | 13.3 | 14.7 | 5 | 10 | 402 | 19.9 | | Request sample | ||
| SM8K13CA | SM8K13A | 13 | 14.4 | 15.9 | 5 | 10 | 372.1 | 21.5 | | Request sample | ||
| SM8K14CA | SM8K14A | 14 | 15.6 | 17.2 | 5 | 10 | 344.8 | 23.2 | | Request sample | ||
| SM8K15CA | SM8K15A | 15 | 16.7 | 18.5 | 5 | 10 | 327.9 | 24.4 | | Request sample | ||
| SM8K16CA | SM8K16A | 16 | 17.8 | 18.7 | 5 | 10 | 307.7 | 26 | | Request sample | ||
| SM8K17CA | SM8K17A | 17 | 18.9 | 20.9 | 5 | 10 | 289.9 | 27.6 | | Request sample | ||
| SM8K18CA | SM8K18A | 18 | 20 | 22.1 | 5 | 10 | 274 | 29.2 | | Request sample | ||
| SM8K20CA | SM8K20A | 20 | 22 | 24.5 | 5 | 10 | 246.9 | 32.4 | | Request sample | ||
| SM8K22CA | SM8K22A | 22 | 24.4 | 28.9 | 5 | 10 | 225.4 | 35.5 | | Request sample | ||
| SM8K24CA | SM8K24A | 24 | 26.7 | 29.5 | 5 | 10 | 205.7 | 38.9 | | Request sample | ||
| SM8K26CA | SM8K26A | 26 | 28.9 | 31.9 | 5 | 10 | 190 | 42.1 | | Request sample | ||
| SM8K28CA | SM8K28A | 28 | 31.1 | 34.4 | 5 | 10 | 176.2 | 45.4 | | Request sample | ||
| SM8K30CA | SM8K30A | 30 | 33.3 | 38.8 | 5 | 10 | 165.3 | 48.4 | | Request sample | ||
| SM8K33CA | SM8K33A | 33 | 36.7 | 40.6 | 5 | 10 | 150.1 | 53.3 | | Request sample | ||
| SM8K36CA | SM8K36A | 36 | 40 | 44.2 | 5 | 10 | 137.7 | 58.1 | | Request sample | ||
| SM8K40CA | SM8K40A | 40 | 44.4 | 40.1 | 5 | 10 | 124 | 64.5 | | Request sample | ||
| SM8K43CA | SM8K43A | 43 | 47.8 | 52.8 | 5 | 10 | 115.3 | 69.4 | | Request sample | ||
| SM8K45CA | SM8K45A | 43 | 50 | 52.7 | 5 | 10 | 110 | 72.7 | | Request sample | ||
| SM8K48CA | SM8K48A | 45 | 53.3 | 56.1 | 5 | 10 | 103.4 | 77.4 | | Request sample | ||
| SM8K51CA | SM8K51A | 48 | 56.7 | 59.7 | 5 | 10 | 97.1 | 82.4 | | Request sample | ||
| SM8K54CA | SM8K54A | 51 | 60 | 63.1 | 5 | 10 | 91.8 | 87.1 | | Request sample | ||
| SM8K58CA | SM8K58A | 54 | 64.4 | 67.8 | 5 | 10 | 85.5 | 93.6 | | Request sample | ||
| SM8K60CA | SM8K60A | 58 | 66.7 | 70.2 | 5 | 10 | 82.6 | 96.8 | | Request sample | ||
| SM8K64CA | SM8K64A | 60 | 71.1 | 74.9 | 5 | 10 | 77.7 | 103 | | Request sample | ||
| SM8K70CA | SM8K70A | 64 | 77.8 | 81.9 | 5 | 10 | 70.8 | 113 | | Request sample | ||
| SM8K75CA | SM8K75A | 70 | 83.3 | 87.7 | 5 | 10 | 66.1 | 121 | | Request sample | ||
| SM8K78CA | SM8K78A | 75 | 86.7 | 91.3 | 5 | 10 | 63.5 | 126 | | Request sample | ||
| SM8K85CA | SM8K85A | 78 | 94.4 | 99.2 | 5 | 10 | 58.4 | 137 | | Request sample | ||
