SMA 1A Series

  • Package name:SMA DO-214AC
  • Case: JEDEC DO-214AC molded plastic
  • Terminals: Solder plated, solderable per JESD22-B102D
  • Polarity: Laser band denotes cathode end
Availability:
Quantity:

Features

  • Low profile package

  • Ideal for automated placement

  • Low power losses, high efficiency

  • Low forward voltage drop

  • High surge capability

  • High temperature soldering:260℃/10 seconds at terminals

  • Component in accordance to RoHS 2002/95/1 and WEEE 2002/96/EC


Application

  • switching power supply

  • charger

  • Power Adapter

  • LED light driver

  • Charging pile charging cabinet

  • Motor electromechanical equipment

  • Welding machine mining equipment

  • Electrical automation equipment



※Disclaimer

Users should verify actual device performance in their specific applications.

Specifications are subject to change without notice.

The device characteristics and parameters in this data sheet can and do vary in different applications and actual device performance may vary over time.


Hot Tags: ss12-ss120(sma) schottky rectifiers, China, manufacturers, factory, price, Surface Mount Schottky Barrier Rectifier, surface mount schottky barrier diode, Schottky Diode, Schottky Rectifiers, SMC Schottky Diode, SMC Schottky Rectifiers

Parameter Symbols SS12 SS13 SS14 SS15 SS16 SS18 SS110 SS115 SS120 Units
Maximum Repetitive Peak Reverse Voltage VRRM 20 30 40 50 60 80 100 150 200 V
Maximum RMS voltage VRMS 14 21 28 35 42 56 70 105 140 V
Maximum DC Blocking Voltage Voc 20 30 40 50 60 80 100 150 200 V
Maximum Average Forward  Rectified
Current
IF(AV) 1.0 A
Peak Forward Surge Current,8.3ms
Single Half Sine-wave Superimposed
on Rated Load
IFSM 40 A
Voltage rate of change (rated VR) dv/dt 10000 V/μs
Thermal resistance from junction to lead (1) RθJL 35 ℃/W
Operating Junction Temperature Range Tj,TSTG -65~+125

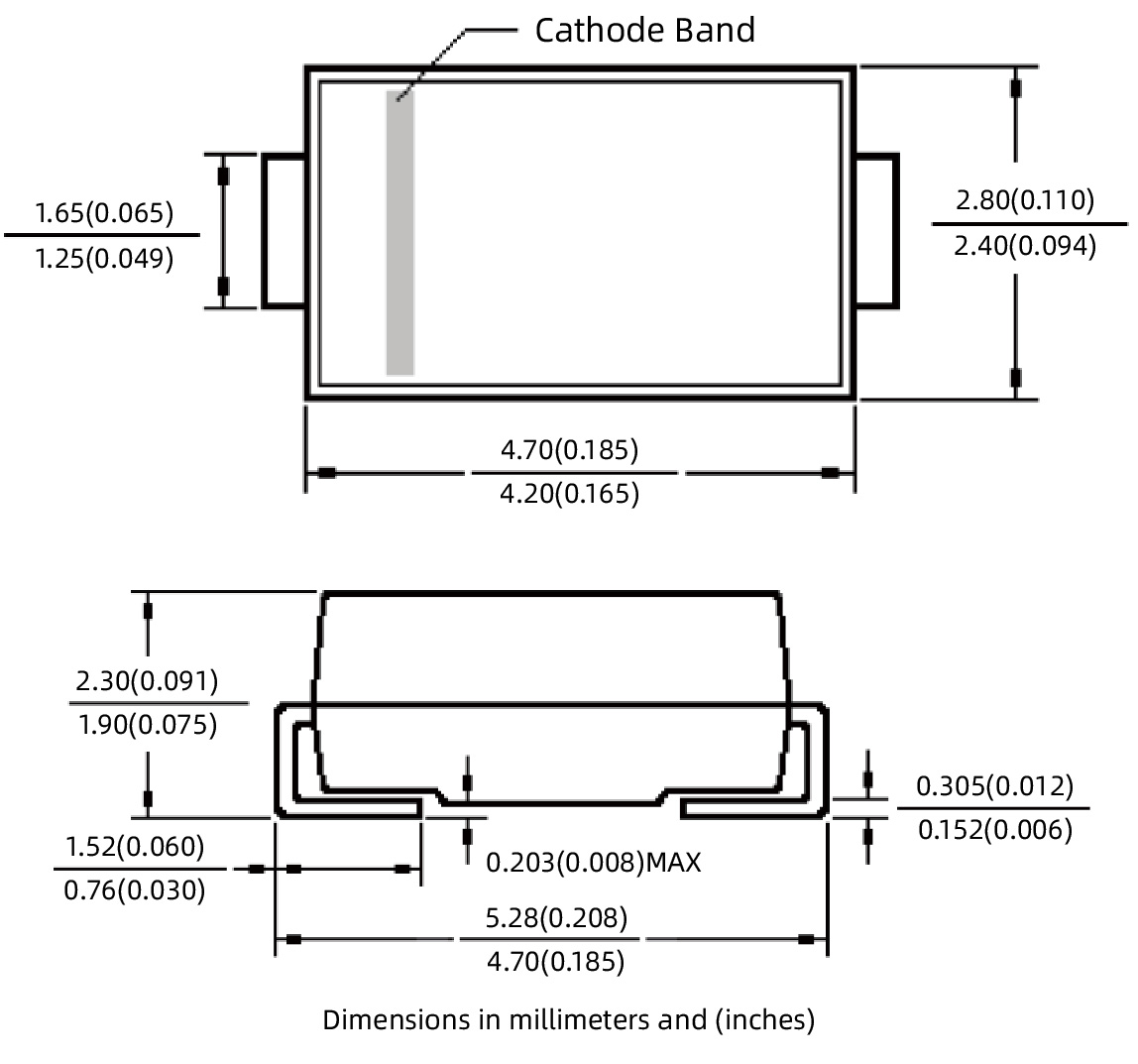

SMA1 SMA2
SMA3


Name VRRM V VRRS V VDC V IF(AV) A IFSM A VF * V IR(MA)25℃ IR(MA)100℃ RθJL* ℃/W RθJL℃/W
SS12 20 14 20 1 30 0.5 0.2 50 28 88
SS13 30 21 30 1 30 0.5 0.2 50 28 88
SS14 40 28 40 1 30 0.7 0.05 10 30 88
SS15 50 35 50 1 30 0.74 0.05 10 30 88
SS16 60 42 60 1 30 0.74 0.05 10 30 88
SS18 80 56 80 1 30 0.8 0.05 5 30 88
SS19 90 63 90 1 30 0.8 0.05 5 30 88
SS110 100 70 100 1 30 0.8 0.05 2 30 88
SS115 150 105 150 1 30 0.9 0.02 2 30 88
SS120 200 140 200 1 30 0.9 0.02 2 30 88
