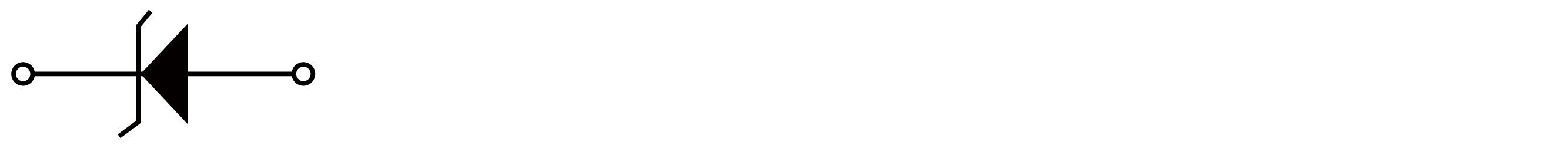

Zener diode YAZ2D Series
overvoltage protection device in SMA/DO-214AC package
Description
Features

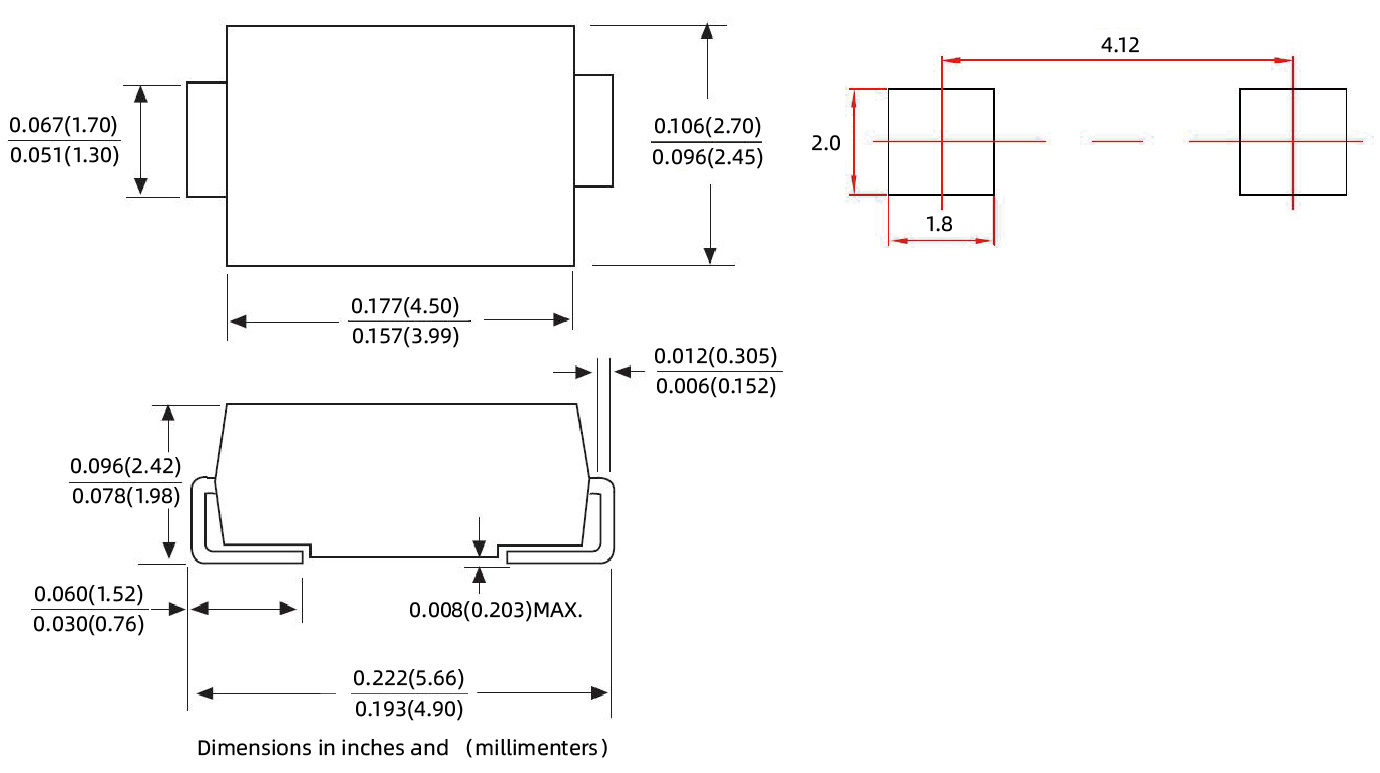

Package
| Parameter | Symbol | Value | Unit |
| Power Dissipation | Pd (TL=75℃) | 2 | W |
| Zener current | IZ | PV/VZ | mA |
| Thermal resistance | RθJA | 75 | ℃/W |
| RθJL | 30 | ℃/W | |
| Forward voltage | VF(IF=200mA) | 1.2 | V |
| Operating and Storage Temperature Range | Tj, Tstg | -65～+150 | ℃ |
| P/N | Zener Voltage Range | IZT | Dynamic Impedance | Reverse Current | Power Dissipation | Status | Samples | ||||||
| VZT(at IZT) | ZZT@IZT | IR | at VR | Ptot | |||||||||
| Min (V) | Nom (V) | Max (V) | (mA) | Max (Ω) | Max (μA) | (V) | W | ||||||
| YAZ2D3V3 | 3.14 | 3.3 | 3.47 | 145 | 8 | 100 | 1 | 2 |  | Request sample | |||
| YAZ2D3V6 | 3.42 | 3.6 | 3.78 | 139 | 5 | 100 | 1 | 2 | | Request sample | |||
| YAZ2D3V9 | 3.71 | 3.9 | 4.1 | 128 | 5 | 50 | 1 | 2 | | Request sample | |||
| YAZ2D4V3 | 4.09 | 4.3 | 4.52 | 116 | 4.5 | 50 | 1 | 2 | | Request sample | |||
| YAZ2D4V7 | 4.47 | 4.7 | 4.94 | 106 | 4.5 | 10 | 1 | 2 | | Request sample | |||
| YAZ2D5V1 | 4.85 | 5.1 | 5.36 | 98 | 3.5 | 10 | 1 | 2 | | Request sample | |||
| YAZ2D5V6 | 5.32 | 5.6 | 5.88 | 89.5 | 2.5 | 10 | 2 | 2 | | Request sample | |||
| YAZ2D6V2 | 5.89 | 6.2 | 6.51 | 80.5 | 1.5 | 10 | 3 | 2 | | Request sample | |||
| YAZ2D6V8 | 6.46 | 6.8 | 7.14 | 73.5 | 2 | 10 | 4 | 2 | | Request sample | |||
| YAZ2D7V5 | 7.13 | 7.5 | 7.88 | 66.5 | 2 | 10 | 5 | 2 | | Request sample | |||
| YAZ2D8V2 | 7.79 | 8.2 | 8.61 | 61 | 2.3 | 10 | 6 | 2 | | Request sample | |||
| YAZ2D9V1 | 8.65 | 9.1 | 9.56 | 55 | 2.5 | 10 | 7 | 2 | | Request sample | |||
| YAZ2D10 | 9.5 | 10 | 10.5 | 50 | 3.5 | 10 | 7.6 | 2 | | Request sample | |||
| YAZ2D11 | 10.45 | 11 | 11.55 | 45.5 | 4 | 1 | 8.4 | 2 | | Request sample | |||
| YAZ2D12 | 11.4 | 12 | 12.6 | 41.5 | 4.5 | 1 | 9.1 | 2 | | Request sample | |||
| YAZ2D13 | 12.35 | 13 | 13.65 | 38.5 | 5 | 0.5 | 9.9 | 2 | | Request sample | |||
| YAZ2D14 | 13.3 | 14 | 14.7 | 35.7 | 5.5 | 0.5 | 10.6 | 2 | | Request sample | |||
| YAZ2D15 | 14.25 | 15 | 15.75 | 33.4 | 7 | 0.5 | 11.4 | 2 | | Request sample | |||
| YAZ2D16 | 15.2 | 16 | 16.8 | 31.2 | 8 | 0.5 | 12.2 | 2 | | Request sample | |||
| YAZ2D17 | 16.15 | 17 | 17.85 | 29.4 | 9 | 0.5 | 13 | 2 | | Request sample | |||
| YAZ2D18 | 17.1 | 18 | 18.9 | 27.8 | 10 | 0.5 | 13.7 | 2 | | Request sample | |||
| YAZ2D19 | 18.05 | 19 | 19.95 | 26.3 | 11 | 0.5 | 14.4 | 2 | | Request sample | |||
| YAZ2D20 | 19 | 20 | 21 | 25 | 11 | 0.5 | 15.2 | 2 | | Request sample | |||
| YAZ2D22 | 20.9 | 22 | 23.1 | 22.8 | 12 | 0.5 | 16.7 | 2 | | Request sample | |||
| YAZ2D24 | 22.8 | 24 | 25.2 | 20.8 | 13 | 0.5 | 18.2 | 2 | | Request sample | |||
| YAZ2D27 | 25.65 | 27 | 28.35 | 18.5 | 18 | 0.5 | 20.6 | 2 | | Request sample | |||
| YAZ2D30 | 28.5 | 30 | 31.5 | 16.6 | 20 | 0.5 | 22.5 | 2 | | Request sample | |||
| YAZ2D33 | 31.35 | 33 | 34.65 | 15.1 | 23 | 0.5 | 25.1 | 2 | | Request sample | |||
| YAZ2D36 | 34.2 | 36 | 37.8 | 13.9 | 25 | 0.5 | 27.4 | 2 | | Request sample | |||
| YAZ2D39 | 37.05 | 39 | 40.95 | 12.8 | 30 | 0.5 | 29.7 | 2 | | Request sample | |||
| YAZ2D43 | 40.85 | 43 | 45.15 | 11.6 | 35 | 0.5 | 32.7 | 2 | | Request sample | |||
| YAZ2D47 | 44.65 | 47 | 49.35 | 10.6 | 40 | 0.5 | 35.8 | 2 | | Request sample | |||
| YAZ2D51 | 48.45 | 51 | 53.55 | 9.8 | 48 | 0.5 | 38.8 | 2 | | Request sample | |||
| YAZ2D56 | 53.2 | 56 | 58.8 | 9 | 55 | 0.5 | 42.6 | 2 | | Request sample | |||
| YAZ2D62 | 58.9 | 62 | 65.1 | 8.1 | 60 | 0.5 | 47.1 | 2 | | Request sample | |||
| YAZ2D68 | 64.6 | 68 | 71.4 | 7.4 | 75 | 0.5 | 51.7 | 2 | | Request sample | |||
| YAZ2D75 | 71.25 | 75 | 78.75 | 6.7 | 90 | 0.5 | 56 | 2 | | Request sample | |||
| YAZ2D82 | 77.9 | 82 | 86.1 | 6.1 | 100 | 0.5 | 62.2 | 2 | | Request sample | |||
| YAZ2D91 | 86.45 | 91 | 95.55 | 5.5 | 125 | 0.5 | 69.2 | 2 | | Request sample | |||
| YAZ2D100 | 95 | 100 | 105 | 5 | 175 | 0.5 | 76 | 2 | | Request sample | |||
| YAZ2D110 | 104.5 | 110 | 115.5 | 4.5 | 250 | 0.5 | 83.6 | 2 | | Request sample | |||
| YAZ2D120 | 114 | 120 | 126 | 4.2 | 325 | 0.5 | 91.2 | 2 | | Request sample | |||
| YAZ2D130 | 123.5 | 130 | 136.5 | 3.8 | 400 | 0.5 | 98.8 | 2 | | Request sample | |||
| YAZ2D140 | 133 | 140 | 147 | 3.6 | 500 | 0.5 | 106.4 | 2 | | Request sample | |||
| YAZ2D150 | 142.5 | 150 | 157.5 | 3.3 | 575 | 0.5 | 114 | 2 | | Request sample | |||
| YAZ2D160 | 152 | 160 | 168 | 3.1 | 650 | 0.5 | 121.6 | 2 | | Request sample | |||
| YAZ2D170 | 161.5 | 170 | 178.5 | 2.9 | 675 | 0.5 | 130.4 | 2 | | Request sample | |||
| YAZ2D180 | 171 | 180 | 189 | 2.8 | 725 | 0.5 | 136.8 | 2 | | Request sample | |||
| YAZ2D190 | 180.5 | 190 | 199.5 | 2.6 | 825 | 0.5 | 144.8 | 2 | | Request sample | |||
| YAZ2D200 | 190 | 200 | 210 | 2.5 | 1900 | 0.5 | 152 | 2 | | Request sample | |||
