SOD-123FL 1A Series

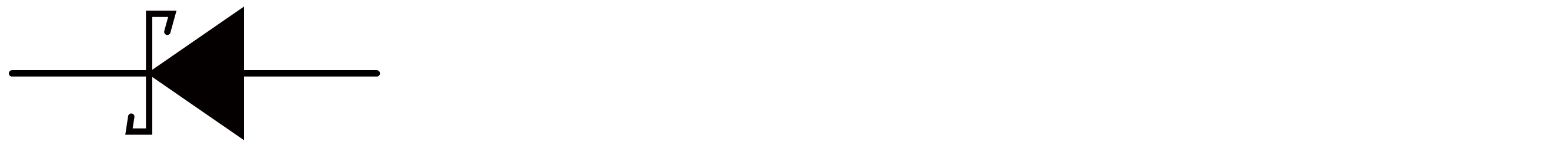

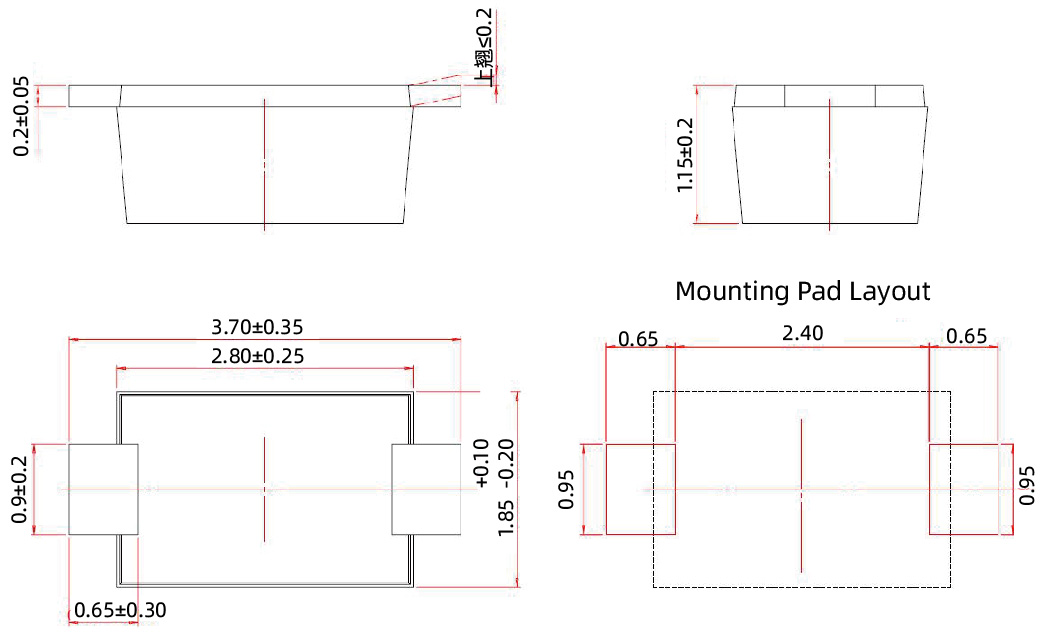

  • Package name:SOD-123FL
  • Metal silicon junction, majority carrier conduction
  • For surface mounted applications
  • Low power loss, high efficiency
  • High forward surge current capability
  • For use in low voltage, high frequency inverters, free wheeling, and polarity protection applications
Availability:
Quantity:

Suitable for low voltage, high frequency rectification as well as freewheeling and polarity protection diodes in a variety of surface mount applications.

Terminals: Solderable per MIL-STD-750, Method 2026



※ Disclaimer

Users should verify actual device performance in their specific applications.

Specifications are subject to change without notice.

The device characteristics and parameters in this data sheet can and do vary in different applications and actual device performance may vary over time.


Hot Tags: ds12-ds120 sod123fl schottky barrier diode, China, manufacturers, factory, price, TO 277 Schottky Diode, Schottky Rectifiers, SMC Schottky Diode, SMD Schottky Barrier Diode, SMC Schottky Rectifiers, Schottky Barrier Rectifiers

Parameter Symbols DS12 DS14 DS16 DS18 DS110 DS112 DS115 DS120 Units
Maximum Repetitive Peak Reverse Voltage VRRM 20 40 60 80 100 120 150 200 V
Maximum RMS voltage VRMS 14 28 42 56 70 84 105 140 V
Maximum DC Blocking Voltage Voc 20 40 60 80 100 120 150 200 V
Maximum Average Forward  Rectified
Current
IF(AV) 1 A
Peak Forward Surge Current,8.3ms
Single Half Sine-wave Superimposed
on Rated Load (JEDEC method)
IFSM 25 A
Max Instantaneous Forward Voltage at 1 A VF 0.55 0.70 0.85 0.90 V
Maximum DC Reverse Current Ta=25℃
at Rated DC Reverse Voltage Ta=100℃
lk 0.3
10
0.2
5
0.1

2
mA
Typical Junction Capacitance¹ C 110 80 pF
Typical Thermal Resistance² ReJA 100 ℃/W
Operating Junction Temperature Range Tj -55~+125
Storage Temperature Range Tstg -55~+150


SOD1231 SOD1232
SOD1233 SOD1234


Name VRRM V VRRS V VDC V IF(AV) A IFSM A VF * V IR(MA)25℃ IR(MA)100℃ RθJL* ℃/W Tj℃ Tstg℃
DS12 20 14 20 1 25 0.55 0.3 10 110 100 -55℃~﹢125℃
DS14 40 28 40 1 25 0.55 0.3 10 110 100 -55℃~﹢125℃
DS16 60 42 60 1 25 0.7 0.3 10 80 100 -55℃~﹢125℃
DS18 80 56 80 1 25 0.7 0.3 10 110 100 -55℃~﹢125℃
DS110 100 70 100 1 25 0.85 0.2 5 80 100 -55℃~﹢125℃
DS112 120 84 120 1 25 0.85 0.2 5 80 100 -55℃~﹢125℃
DS115 150 105 150 1 25 0.9 0.1 2 80 100 -55℃~﹢125℃
DS120 200 140 200 1 25 0.9 0.1 2 80 100 -55℃~﹢125℃
