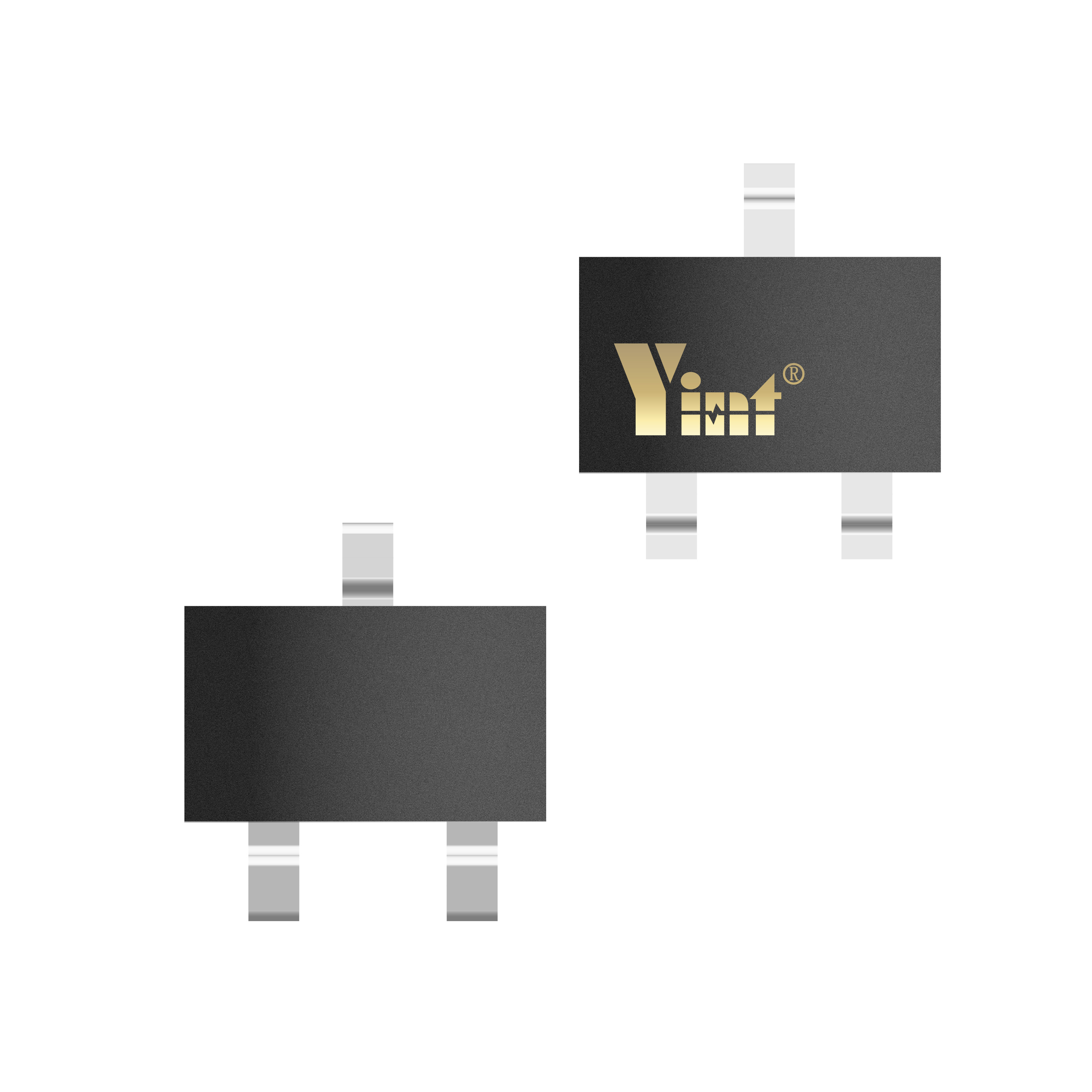

SOT23 Series

  • Compact package, easy to install
  • High-efficiency overvoltage protection device
  • Ultra-low forward pressure drop
  • Ideal products for High Frequency Circuits
  • Comply with relevant welding international standard MIL-STD-202
Availability:
Quantity:

Schottky (Schottky) diode is also known as Schottky barrier Rectifiers (SBR),) has been in the power supply industry for 25 years, it is a low-power, ultra-high speed semiconductor devices, widely used in switching power supplies, frequency converters, Driver circuit, such as high frequency, low voltage, high current rectifier diode, continuous current diode, protection diode, or microwave communication circuit as rectifier diode, small signal detector diode.


SOT-23

BAT54

BAT54A

BAT54C

BAT54S

Pin
BAT54 BAT54A BAT54C BAT54S
1 a K1

a1

a1
2 / K2 a2 K2
3 K1 a K1、K2 K1、a2



Hot Tags: bat54 series sot23 smd schottky barrier diode, China, manufacturers, factory, price, Schottky Barrier Diode, Schottky Rectifier, Schottky Barrier Diodes, Schottky Diode, SMD Schottky Barrier Diode, Schottky Rectifiers

Parameter Symbol Limits Unit
Peak Repetitive Peak reverse voltage
Working Peak Reverse Voltage
DC Blocking Voltage
VRRM
VRWM
VR
30 V
Forward Continuous Current IFM 200 mA
Power Dissipation PD 200 mW
Storage temperature TSTG -55-150


Parameter Symbol Min. Typ. Max. Unit Conditions
Reverse Breakdown Voltage V(BR)R 30

V IR=100μA

VF1

0.24 V IF=0.1mA
VF2

0.32 V IF=1mA
VF3

0.40 V IF=10mA
VF4

0.50 V IF=30mA
VF5

1 V IF=100mA
Reverse current IR

2 μA VR=25V
Diode Capacitance CD

10 pF VR=1V,f=1MHz
Reverse Recovery Time trr

5 nS IF=I =10mAR
     Irr=0.1XI ,R =100ΩR L


sot23-1

sot23-2

sot23-3


Symbol
Millimeters Inches
Min. Max. Min. Max.
A

0.900

1.150 0.035 0.045
A1 0.000 0.100 0.000 0.004
A2 0.900 1.050 0.035 0.041
b 0.300 0.500 0.012 0.020
c 0.080 0.150 0.003 0.006
D 2.800 3.000 0.110 0.118
E 1.200 1.400 0.047 0.055
E1 2.250 2.550 0.089 0.100
e 0.950TYP. 0.037TYP.
e1 1.800 2.000 0.071 0.079
L 0.550REF. 0.022REF.
L1 0.300 0.500 0.012 0.020
θ


Name PD VRRM IF(AV) IFRM IFSM VF IR CJ
BTA54 225 30 0.2 300 0.6 0.32 0.8 2.0 10
BAT54A 225 30 0.2 300 0.6 0.32 0.8 2.0 10
BAT54C 225 30 0.2 300 0.6 0.32 0.8 2.0 10
BAT54S 225 30 0.2 300 0.6 0.32 0.8 2.0 10
