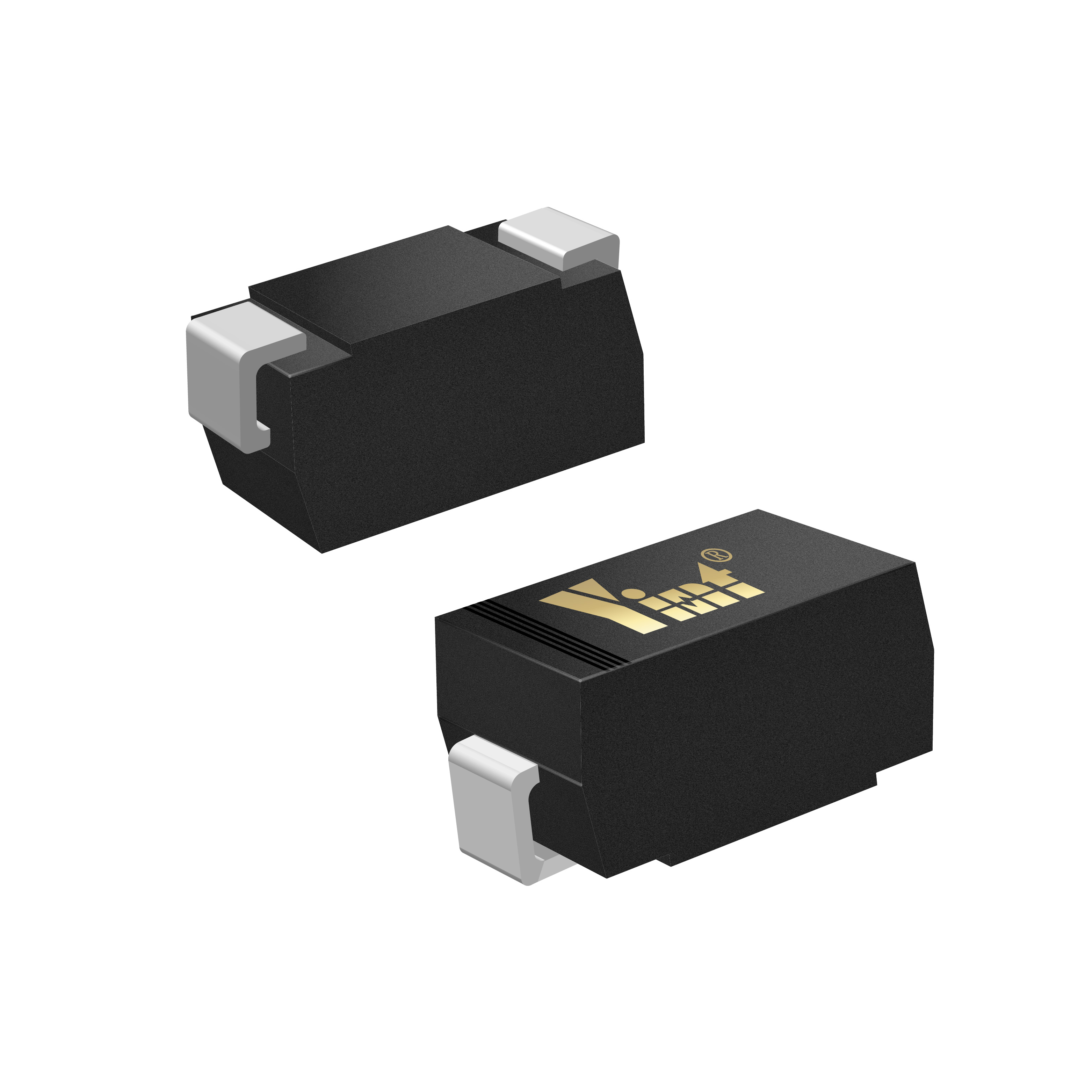

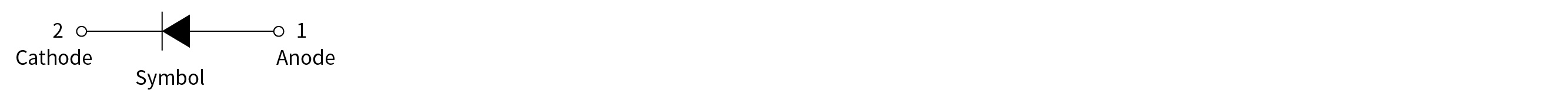

SMA 2A Series

  • Package name:SMA
  • Certification: RoHS
  • Packaging: in reel
  • Compact package, easy to install
  • Efficient overvoltage protection device
  • Ultra-low forward pressure drop
  • Ideal products for High Frequency Circuits
  • Comply with relevant welding international standard MIL-STD-202
Availability:
Quantity:
  • IF(AV): 2.0A

  • VRRM :20 V to 200 V

  • IFSM :50A

  • VF :0.50V, 0.55V, 0.70V, 0.85V,0.95V

  • Tj max.:125℃



※Disclaimer

Users should verify actual device performance in their specific applications.

Specifications are subject to change without notice.

The device characteristics and parameters in this data sheet can and do vary in different applications and actual device performance may vary over time.


Hot Tags: ss22-ss220(sma) schottky barrier rectifiers, China, manufacturers, factory, price, Schottky Diode, SMC Schottky Diode, Schottky Rectifiers, SMC Schottky Rectifiers, Schottky Barrier Diode, Schottky Rectifier

Maximum Ratings & Thermal Characteristics

(TA = 25 °C unless otherwise noted)

Items Symbol SS22 SS23 SS24 SS25 SS26 SS28 SS210 SS215 SS220 Unit
Maximum repetitive peak
reverse voltage
VRRM 20 30 40 50 60 80 100 150 200 V
Maximum RMS voltage VRMS 14 21 28 35 42 56 70 105 140 V
Maximum DC blocking
voltage
VDC 20 30 40 50 60 80 100 150 200 V
Maximum average
forward rectified current
IF(AV) 2.0 A
Peak forward surge current 8.3ms single half sine-wave superimposed
on rated load
IFSM 50 A
Voltage rate of change
(rated VR)
dv/dt 10000 V/μs
Thermal resistance from
junction to lead (1)
RθJL 35 °C/W
Operating junction and storage temperature range TJ,TSTG -65 TO +125 °C

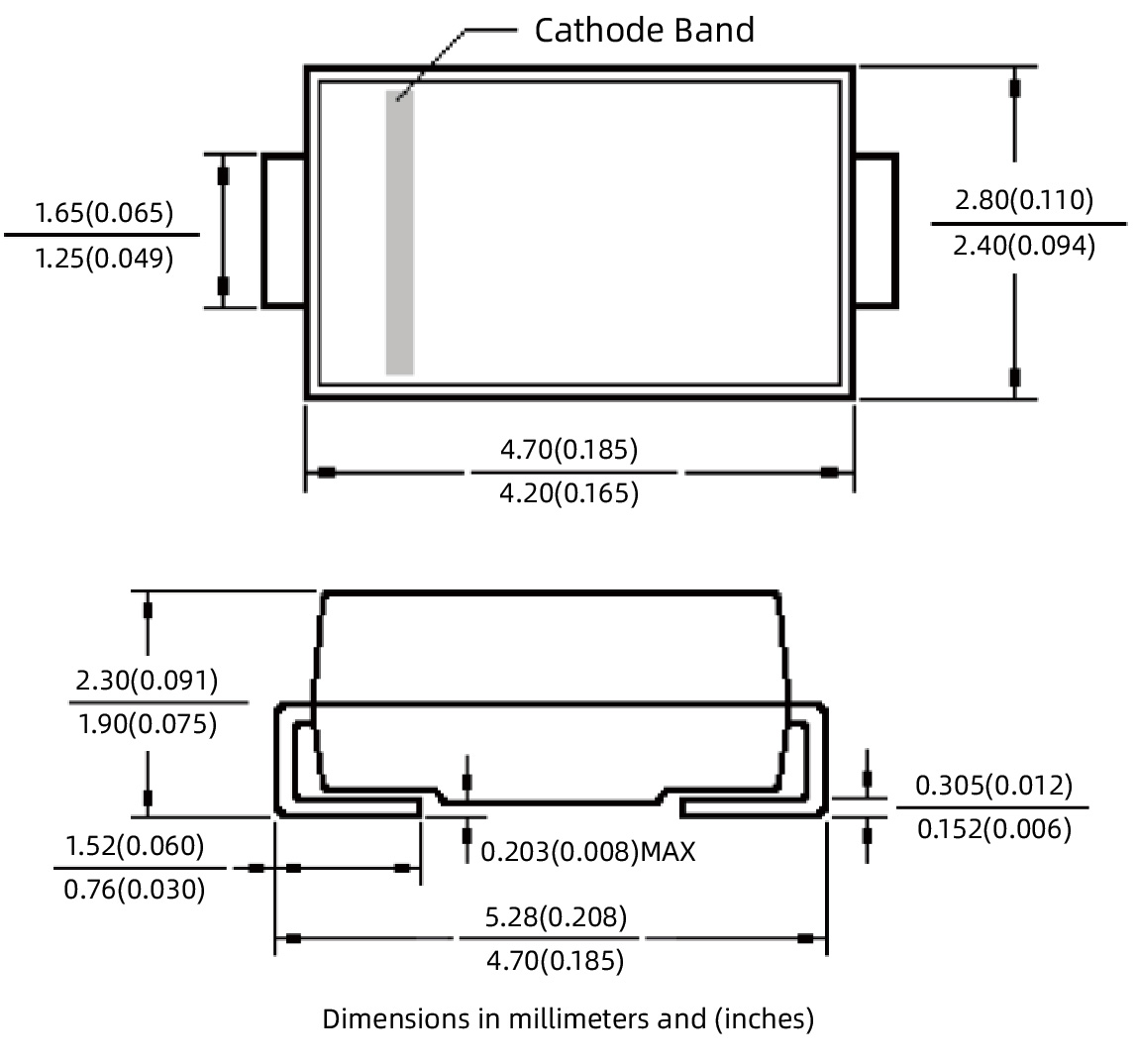

Note 1: Mounted on P.C.B. with 0.2 x 0.2” (5.0 x 5.0mm) copper pad areas.



SMA1 SMA2
SMA3


Name VRRM V VRRS V VDC V IF(AV) A IFSM A VF * V IR(MA) 25℃ IR(MA) 100℃ RθJL * ℃/W RθJA ℃/W
SS22 20 14 20 2 50 0.5 0.2 20 20 75
SS23 30 21 30 2 50 0.5 0.2 20 20 75
SS24 40 28 40 2 50 0.7 0.05 20 20 75
SS25 50 35 50 2 50 0.7 0.05 20 20 75
SS26 60 42 60 2 50 0.7 0.05 20 20 75
SS28 80 56 80 2 50 0.8 0.05 20 20 75
SS29 90 63 90 2 50 0.8 0.05 20 20 75
SS210 100 70 100 2 50 0.8 0.05 20 20 75
SS215 150 105 150 2 50 0.9 0.05 20 20 75
SS220 200 140 200 2 50 0.9 0.05 20 20 75
