TVS SMB15J40CA/A

  • Low profile package
  • Ideal for automated placement
  • Glass passivated chip junction
  • Excellent clamping capability
  • Very fast response time
  • Low incremental surge resistance
  • IEC 61000-4-2 ESD 30 kV(Air), 30 kV (Contact)
  • Meets MSL level 1, per J-STD-020, LF maximum peak of 260 °C
  • Case: DO-214AA (SMB)
  • 600 W peak pulse power capability with a10/1000 us waveform, repetitive rate (duty cycle):0.01 %
Availability:
Quantity:
  • SMBJ1505CA.pdf

  • DO-214AA

  • 1

  • 200W-600W

  • 9.2-290V

Feature:

Asymmetric TVS diode for gate-level protection of SiC MOS.

The voltage from A1 to A2 is 5V, and the voltage from A2 to A1 is 15V. Since the gate level of the SIC MOS device has a low negative voltage tolerance, the conventional protection circuit requires two TVSs with different voltages, but the SMBJ1505CA launched by our company only requires one.

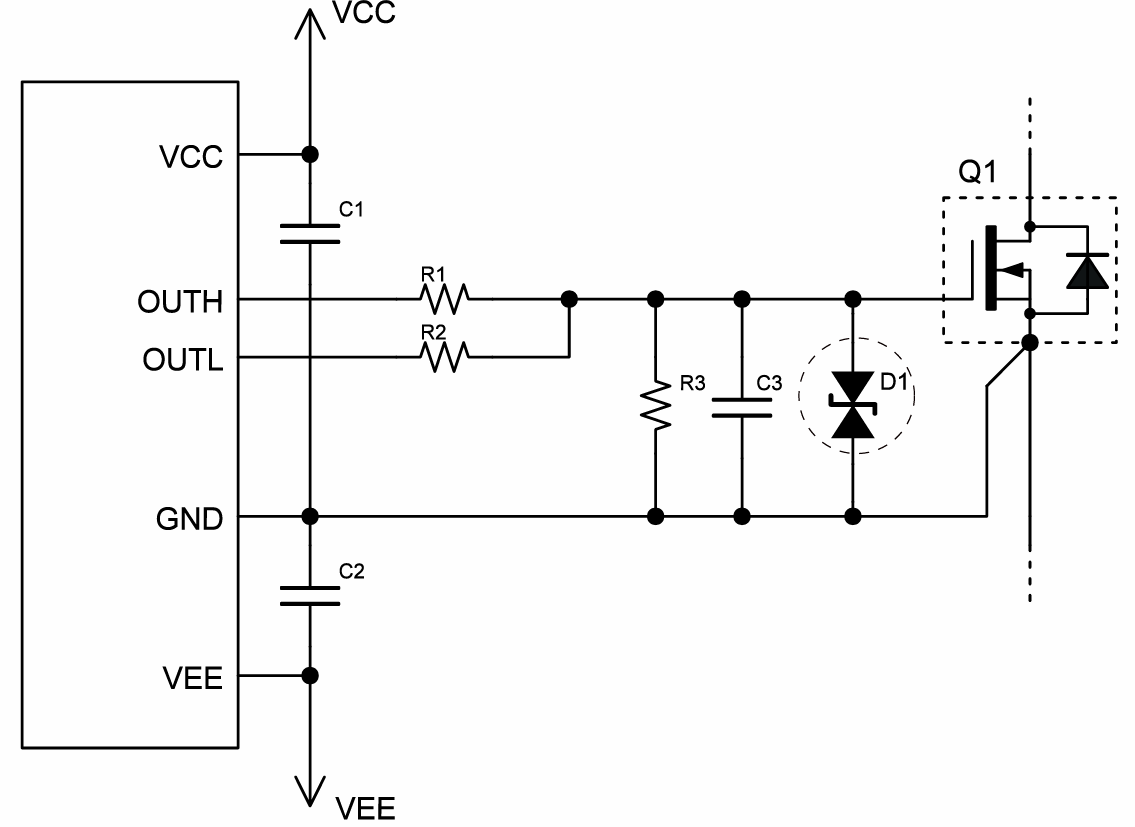

TVS diode application



Maximum Ratings (TA=25unless otherwise noted)

Parameter
Symbol Value Unit
Minimum Peak Pulse Power Dissipation (T = 1 ms) PPK 600 Watts
Operating Temperature Range TJ -55 to +150
Storage Temperature Range TSTG -55 to +150
