Overview Specifications Package Information Related Products

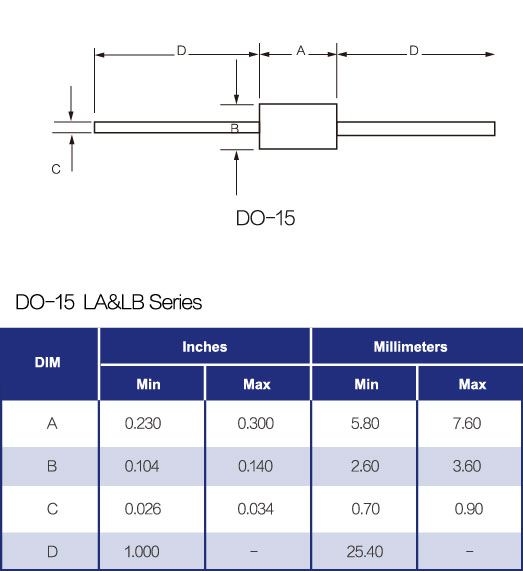

Package
Dimensions
P3100LCLDimensions
View
P3100LCLDimensions
View
Thyristor Surge Suppressor

P3100LCL

High-performance TSS with nanosecond response, high surge absorption and low leakage for telecom overvoltage & ESD protection.

DATA SHEETDATA SHEET SAMPLE

Product details

Package
DO-15
IDRM[Max](μA)
1.00
VDRM[Min](V)
275.00
Vs[Max](V)
350.00
Is[Max](mA)
800.00
VT[Max](V)
4.00
IT[Max](A)
2.20
IH[Min](mA)
120.00
CO[Max](pF)
40.00
Ipp 2/10μS Amps
500
Ipp 8/20μS Amps
400
Ipp 10/160μS Amps
200
Ipp 10/560μS Amps
150
Ipp 10/1000μS Amps
100
ITSM 60HZ Amps
50
Di/Dt Amps/μS
500
Status
Active

Package Information

Mounting Type
plugin
Package Type
DO-15
Unit Weight
Packing Information
Box Packaging：2000 pieces/box
